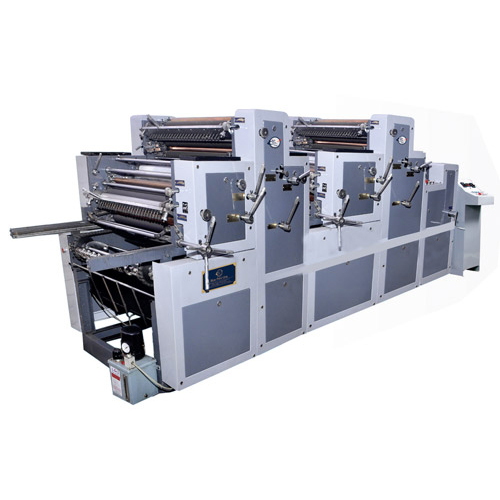

सैटेलाइट फोर कलर नॉन वेवन प्रिंटिंग मशीन
2000000 आईएनआर/Unit
उत्पाद विवरण:
- टाइप करें सैटेलाइट चार रंग गैर बुना मुद्रण मशीन
- मटेरियल हल्का स्टील
- कम्प्यूटरीकृत नहीं
- स्वचालित ग्रेड ऑटोमेटिक
- स्याही का प्रकार
- साइज विभिन्न आकार
- वजन (किग्रा) उपलब्ध अनुसार किलोग्राम (kg)
- अधिक देखने के लिए क्लिक करें
X
सैटेलाइट फोर कलर नॉन वेवन प्रिंटिंग मशीन मूल्य और मात्रा
- यूनिट/यूनिट
- 1
- यूनिट/यूनिट
सैटेलाइट फोर कलर नॉन वेवन प्रिंटिंग मशीन उत्पाद की विशेषताएं
- हल्का स्टील
- ऑटोमेटिक
- नहीं
- विभिन्न आकार
- उपलब्ध अनुसार मिलीमीटर (mm)
- उपलब्ध अनुसार किलोग्राम (kg)
- सैटेलाइट चार रंग गैर बुना मुद्रण मशीन
सैटेलाइट फोर कलर नॉन वेवन प्रिंटिंग मशीन व्यापार सूचना
- 30 प्रति महीने
- दिन
- ऑल इंडिया
उत्पाद वर्णन
The Satellite Four Color Non Woven Printing Machine is made of durable mild steel and comes in various sizes to suit different printing needs. This automatic machine is designed to efficiently print on non woven materials, making it a versatile addition to any production line. With its computerized technology, it ensures precise and high-quality printing results. The weight and dimensions of the machine vary based on the specific model, providing flexibility for different workspace requirements. As a distributor, exporter, importer, manufacturer, supplier, and trader of this printing machine, we ensure that it meets the highest industry standards and offers reliable performance for various printing applications.
Optional Features :
- Lateral and circumferential running registration systems.
- Dampening water re- circulation system.
- Centralized greasing system for all gripper shafts on both ends.
- Automatic centralized oil lubrication system.
- Anti set -off powder spray system.
- Compact main control panel, DC variable speed drive mechanism with digital sheet counter, speedometer.
- Mechanical no - sheet and double sheet detector fitted for smooth feeding and safe feeding of paper.
- ALL Gears of BPL sheetfed offset printing equipment are of EN-353 hardened and well grounded.
- ALL transfer cylinders of BPL sheet - fed offset printing equipment are covered with Teflon/glass wool coated cloth for scratch-less printing.
- Crawling speed for blanket & plate cleaning.
- Pendent of facilitate emergency impression trip off, inching forward and reverse. All cast iron cylinders of sheet fed offset printing equipment are perfectly seasoned and hard chrome plated fitted with EN-353 hardened bearer rings.
- Alcohol/water dampening with BALDWIN Basicliner Fountain solution premixing with EN-353 hardened
Technical Specifications :
| MODEL | BPL 422 SS | BPL 424 SS |
|---|---|---|
| Dimension: | 155"L x 45"W x 57" | 168"L x 50"W x 60" |
| Weight | 2200 Kg (Approx) | 2450 Kg |
| Power Requirements: | 200-240 AC | 200-240 AC |
| Maximum Paper Size: | 16.5" W x 22.5" L | 18.5" W x 24.5" L |
| Minimum Paper Size: | 5" W x 7" L | 5" W x 7" L |
| Maximum Image Area: | 15.5" W x 22" L | 117.5" W x 24" L |
| Paper Weight: | 40-400 GSM | 40-400 GSM |
| Blanket Thickness: | 1.9 mm | 1.9 mm |
| | (4 Ply Rubber Blanket) | (4 Ply Rubber Blanket) |
| Blanket size: | 19.5" x 23" | 19.5" x 23" |
| Plate Size: | 17.5" x 23" | 17.5" x 23" |
| Plate Thickness: | 0.3 | 0.3 |
| Gripper Margin on paper: | 8 to 10 mm | 8 to 10 mm |
| Gripper Margin on plate: | 1.25" | 1.25" |
| Feeding System: | Suction Feeding | Suction Feeding |
| Ink Roller: | 14/4 Ink Roller | 14/4 Ink Roller |
| | Includes : 3 Oscillators, | Includes : 3 Oscillators, |
| Dampening Rollers: | 5/4/5/4 From Rollers | 5/4/5/4 From Rollers |
| Printing Speed : on paper: | 1500-5000 IPH | 1500-5000 IPH |
| Printing Speed : on Bags: | 1500-3500 IPH | 1500-3500 IPH |
| Main Drive Motor: | 5 HP Single Phase | 5 HP Single Phase |
| Compressor Pump Motor: | 1.5 HP Single Phase | 1.5 HP Single Phase |
FAQs of Satellite Four Color Non Woven Printing Machine:
Q: What is the material used for the Satellite Four Color Non Woven Printing Machine?
A: The machine is made of durable mild steel.Q: Is the machine computerized?
A: Yes, the Satellite Four Color Non Woven Printing Machine is computerized for precise and high-quality printing.Q: What is the automatic grade of the machine?
A: The machine has an automatic grade, ensuring efficient and streamlined printing processes.Q: What are the available sizes of the machine?
A: The machine comes in different sizes to accommodate various printing needs.Q: As a distributor, what assurance do you provide for the product?
A: As a distributor, we ensure that the machine meets the highest industry standards and offers reliable performance for various printing applications.Tell us about your requirement
