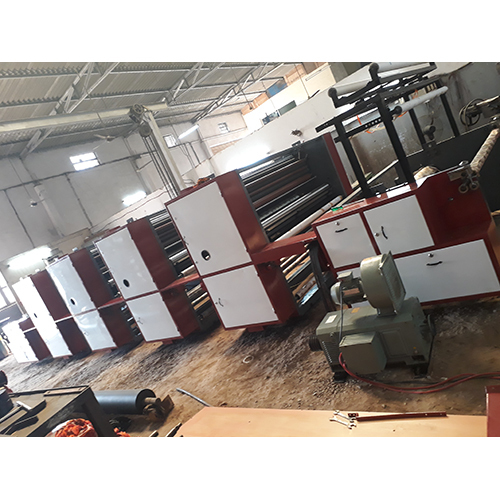

Veriable Reel To Reel 4 Colour Advanced High

Product Description

Specification of 4 color Flexo Printing machine.

Performance: The machine adopts rubber plate as of plate printing machine, suitable for printing roll material such packing materials as non-woven fabric, roll paper, paper packing bag, Kraft Paper and Duplex paper etc.

•   Easy operation, flexible starting, accurate color register.
• The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
•   Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
• The printing ink is spread by the Flexo cylinder with Waterbase ink color.
•   Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
• 360 continuous and adjustable longitudinal register device.
• The frequency control of motor speed adapts to different printing speeds.
• There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
• Magnetic powder or manually brake for unwinding tension control. Magnetic powder clutch for rewinding tension control.

Main Specification Of The Machine:

• Model BPL-4 (1200mm AND AS PER CUSTOMIZED)
• Printing MachineNon woven fabric, roll paper, Kraft paper, Duplex Paper and so on.
• Max. Printing Width1200mm and as per customized
• Max. Printing Length100 to 1000mm AND AS PER CUSTOMIZED
• Mechanical Speed  10 to 80m/m
• Printing Speed10 to 60m/m
• Image Plate Thickness (include adhesive tape2.8mm

Feeding Material Unit:

• Reel Length1200mm AND AS PER CUSTOMIZED
• Valid printing reel length 1200mm AND AS PER CUSTOMIZE
• Reel core diameter 76mm
• Max diameter of feeding Material 1078mm
• Feeding mode: magnetic powder brake auto tension feeding, with photocell side correction

Pulling Unit:

• Pulling part: belt roller chroming roller
• Group: 4 groups

Printing Unit:

• Printing part: chroming roller, printing roller, rubber roller
• Printing roller circumference: 100-1000mm
• Printing plate material: PVC rubber
• Drive mode: gear drive
• Printing: 360 degree rotate
• Adjust mode: manual,
• Plate Lifting: manual

Heating & Dry Part:

• Heat drying system: blower with heating
• Heating area: 4 color 6 pieces
• Heating power: 1500mm Model: 5kw
• Assistant drying length: 1 meter
• Fan 2 pieces
• Blowing powder: 1200mm: 2x1.1kw

Motor Unit:

• Main motor: 4color 1200mm: 3kw
• Running ink motor: 4 color 1200mm: 0.75kw
• Main motor adopt frequency control adjusting speed

Rewinding Part:

• Reel length: 1200mm
• Valid reel: 1200 mm
• Reel core diameter: 76mm
• Max feeding diameter: 1000mm
•  Rewinding mode: magnetic powder auto tension control rewinding

Main Detailed Parts List:

• Main Motor:1pc 3Kw
•   Inking motor:1pc 0.75kw
•  Inverter:1 set (Japan
• Fan:2pcs 1.1Kw (APP
• Aluminum guide roller: (BST SYONA investment, surface oxidation, static and dynamic equalization treatment)
• Metal roller: each color one piece
• Rubber roller: one color one piece
• Brake powder: one set
• Low-voltage appliance (Omron)
• Switch: (France Schneider)
• Electric control case: Local
• Main Machine Body
• Machine cast:
• Bearings: Japan USK
• Pneumatic elements: (JENETICS
• Powder brake and Tension controller (Japan Mitsubishi AND A "Variable Reel-to-Reel 4-Color Advanced High" press is an automated continuous-web printing system. It prints full-color graphics, text, or variable data onto continuous rolls (reels) of flexible substrates like paper, film, or foil. [1, 2, 3, 4, 5]
  These industrial presses are widely used for producing custom labels, flexible packaging, and tickets. Key capabilities include:
  • Four-Color CMYK Processing: Capable of printing process color or high-density spot colors to create vibrant, full-spectrum designs. [1]
  • Variable Data Capability: Often integrated with advanced inkjet or digital controllers, allowing the press to alter printed elements (like barcodes, serial numbers, or security codes) dynamically from one label to the next on the same roll. [1, 2]
  • Continuous Web Transport: Uses a motorized unwind, web-guide sensors for alignment, and automated rewind systems to manage tension and ensure precise registration across multiple colors. [1]
  • High-Speed Operation: Geared for high throughput, often exceeding running speeds of 100 meters per minute, depending on the complexity of the job
