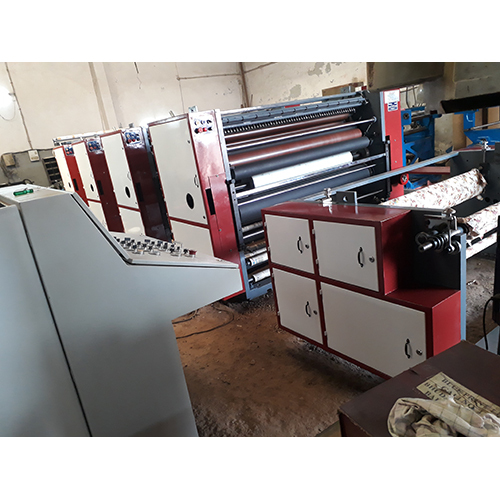

Veriable Reel To Reel Latest Technology Flexo Printing Machine
5000000.0 INR/Piece
Product Details:
- Type Veriable Reel To Reel Flexo Printing Machine
- Material Metal
- Computerized No
- Automatic Grade Automatic
- Ink Type UV Curing Ink
- Size Standard
- Warranty 1 Year
- Click to View more
X
Veriable Reel To Reel Latest Technology Flexo Printing Machine Price And Quantity
- 5000000.0 INR/Piece
- 1 Piece
Veriable Reel To Reel Latest Technology Flexo Printing Machine Product Specifications
- UV Curing Ink
- 1 Year
- No
- Standard
- Metal
- Automatic
- Veriable Reel To Reel Flexo Printing Machine
Veriable Reel To Reel Latest Technology Flexo Printing Machine Trade Information
- 10 Piece Per Week
- 15 Days
Product Description
Specification of 4 color Flexo Printing machine
Performance The machine adopts rubber plate as of plate printing machine suitable for printing roll material such packing materials as nonwoven fabric roll paper paper packing bag Kraft Paper and Duplex paper etc
Easy operation flexible starting accurate color register
The meter counter can set printing quantity according to the requirements Stop the machine automatically at the quantity or when the material is cut off
Pneumatic printing cylinder lift and lower it will stir the printing ink automatically after lifting
The printing ink is spread by the Flexo cylinder with Waterbase ink color
Reliable drying system coordinated with highspeed rotation it will automatically break circuit when the machine stops
360 continuous and adjustable longitudinal register device
The frequency control of motor speed adapts to different printing speeds
There are JoggingStopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed
Magnetic powder or manually brake for unwinding tension control Magnetic powder clutch for rewinding tension control
Main Specification Of The Machine
ModelBPL4 1200mm AND AS PER CUSTOMIZED
Printing MachineNon woven fabric roll paper Kraft paper Duplex Paper and so on
Max Printing Width 1200mm and as per customized
Max Printing Length1001000mm AND AS PER CUSTOMIZED
Mechanical Speed 1080mm
Printing Speed1060mm
Image Plate Thickness include adhesive tape28mm
Feeding Material Unit
Reel Length1200mm AND AS PER CUSTOMIZED
Valid printing reel length1200mm AND AS PER CUSTOMIZE
Reel core diameter 76mm
Max diameter of feeding Material 1078mm
Feeding mode magnetic powder brake auto tension feeding with photocell side correction
Pulling Unit
Pulling part belt roller chroming roller
Group 4 groups
Printing Unit
Printing part chroming roller printing roller rubber roller
Printing roller circumference 1001000mm
Printing plate material PVC rubber
Drive mode gear drive
Printing 360 degree rotate
Adjust mode manual
Plate Lifting manual
Heating Dry Part
Heat drying system blower with heating
Heating area 4 color 6 pieces
Heating power 1500mm Model 5kw
Assistant drying length 1 meter
Fan2 pieces
Blowing powder 1200mm 211kw
Motor Unit
Main motor 4color 1200mm 3kw
Running ink motor 4 color 1200mm 075kw
Main motor adopt frequency control adjusting speed
Rewinding Part
Reel length 1200mm
Valid reel 1200mm
Reel core diameter 76mm
Max feeding diameter 1000mm
Rewinding mode magnetic powder auto tension control rewinding
Main Detailed Parts List
Main Motor1pc 3Kw
Inking motor1pc 075kw
Inverter1 set Japan
Fan2pcs 11Kw APP
Aluminum guide roller BST SYONA investment surface oxidation static and dynamic equalization treatment
Metal roller each color one piece
Rubber roller one color one piece
Brake powder one set
Lowvoltage appliance Omron
Switch France Schneider
Electric control case Local
Main Machine Body
Machine cast
Bearings Japan USK
Pneumatic elements JENETICS
Powder brake and Tension controller Japan Mitsubishi AND INDIAN
A Variable Reel-to-Reel (R2R) Flexo Printing Machine is a highly automated industrial system that prints continuous designs onto flexible rolls of paper, film, or non-woven fabric. It is primarily distinguished by its modular architecture, allowing operators to change printing widths, repeat lengths, and auxiliary stations depending on job requirements.
Key Technological Features
Modern R2R flexo presses are built for high precision and fast changeover times, minimizing material waste. Standard state-of-the-art features include:
- Servo Drive Technology: Individual servo motors control each printing unit, ensuring highly precise graphic positioning, tension control, and online registration without the need for manual gear adjustments.
- Variable Repeat Lengths: Allows the use of different cylinder sizes to vary the print length (repeat) seamlessly, catering to various packaging and label dimensions.
- Doctor Blade & Ceramic Anilox System: Replaces older systems by delivering a highly metered, consistent ink film to the printing plate. This system ensures sharp, high-quality color reproduction.
- Auto-Tension Control: Employs magnetic powder brakes or servo-driven tensioners on both the unwinder and rewinder sections. This keeps the web from stretching or wrinkling during high-speed printing.
- Inline Processing: Many modern units feature modular attachments that allow for die-cutting, cold/hot foiling, or laminating, turning a single R2R machine into a complete production line
Advanced UV Curing Technology
This flexo printing machine utilizes UV curing ink, providing rapid drying and vibrant, durable prints. The technology is tailored for excellent adhesion on a variety of substrates, ensuring that every output meets commercial standards for quality and longevity.
Automatic Operation for Efficiency
With its automatic grade function, this machine streamlines the printing process, reducing manual intervention and operational delays. Users benefit from smooth transitions between print runs, minimal setup times, and enhanced productivity for large-scale projects.
Robust Build and Reliable Performance
Constructed with high-grade metal and standard-sized components, this flexo printing machine promises longevity under continuous industrial use. Its sturdy design and consistent operation make it an excellent choice for manufacturers, exporters, and suppliers seeking dependable equipment.
FAQ's of Veriable Reel To Reel Latest Technology Flexo Printing Machine:
Q: How does the Veriable Reel To Reel Flexo Printing Machine operate automatically?
A: This machine features automatic mechanisms that control the feed, printing, and reeling processes, minimizing manual tasks while ensuring steady and accurate printing cycles. Operators can manage settings with ease, promoting efficiency and reducing the risk of errors.Q: What materials and inks can be used with this flexo printing machine?
A: The machine is compatible with a wide array of reel materials, as long as they conform to standard sizes. It is specifically designed for use with UV curing ink, which ensures quick drying and high-quality print results.Q: When is this machine ideal for use in industrial printing operations?
A: This flexo printing machine is best suited for continuous, high-volume production environments where consistent output and reliability are crucial. Its automatic features and durable construction make it perfect for demanding production schedules.Q: Where can this printing machine be supplied from?
A: The machine is manufactured and exported from India by reputable suppliers, making it accessible for buyers both locally and internationally. Its robust manufacturing base ensures reliable support and service for customers.Q: What is the process for installing and commissioning the machine?
A: Installation involves positioning the standard-sized machine and connecting it to necessary utilities. Once setup is complete, operational checks are performed to ensure all automatic systems and UV curing units are functional before commencing production.Q: How does using UV curing ink benefit printing applications?
A: UV curing ink allows for instant drying upon exposure to ultraviolet light, resulting in sharper images and enhanced durability. This increases production speed and reduces wait times between print runs, ultimately boosting overall productivity.Q: What warranty and support services are available with this machine?
A: Customers receive a comprehensive 1-year warranty covering manufacturer defects and operational issues. Support services are provided by the supplier or manufacturer, ensuring prompt assistance with installation, operation, and maintenance.Tell us about your requirement
